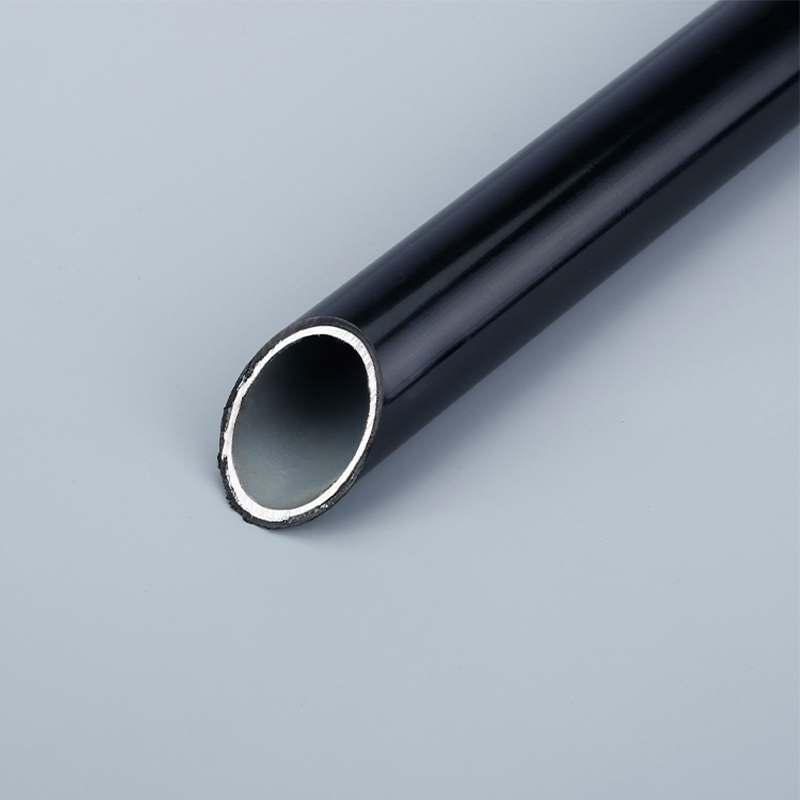

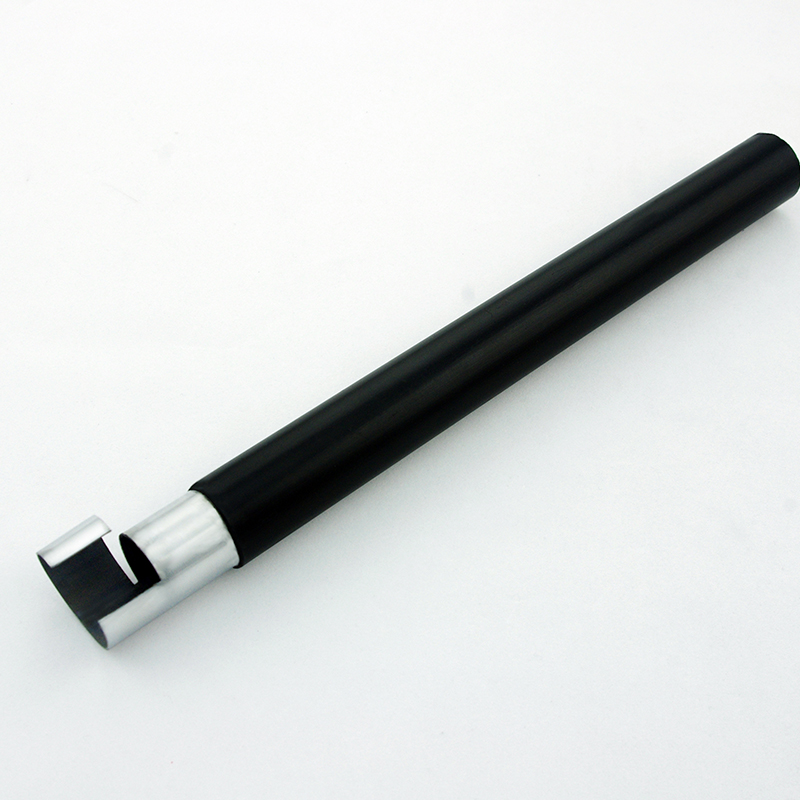

ESD coated pipe is also known as anti-static composite pipe or conductive flexible pipe, the inner quality of the steel pipe after surface treatment surface coated with ESD plastic layer, is produced on the surface of the steel pipe through extrusion + plastic coating process. The thickness of the ESD plastic coating is 1.2mm, and the inner wall of the pipe has a rust-proof coating.
| product specification | ||||
| color encode | thickness | meter/kg | Conductivity | Outer diameter |
| black：JY-4000H-PESD | 0.7mm | 0.53kg/m | 10^6-10^9 ohms | 27.8±0.2mm |
| 0.8mm | 0.57kg/m | |||
| 1.0mm | 0.70kg/m | |||
| 1.2mm | 0.84kg/m | |||
| 2.0mm | 1.27kg/m | |||
Material requirements
1、We use hardened cold rolled steel as raw material, and the coated pipe produced has good bearing capacity and bending resistance.

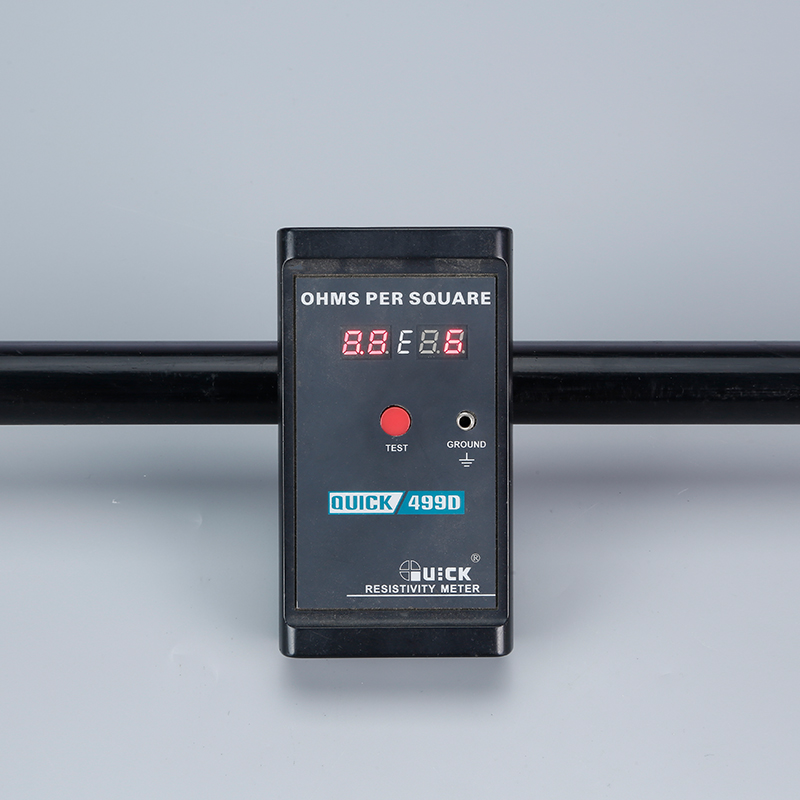

2、The conductive value of the anti-static material we have chosen is 10^6-10^9 ohms.
3、The thickness error of steel used in our coated pipe is < 0.05mm.
Range of application

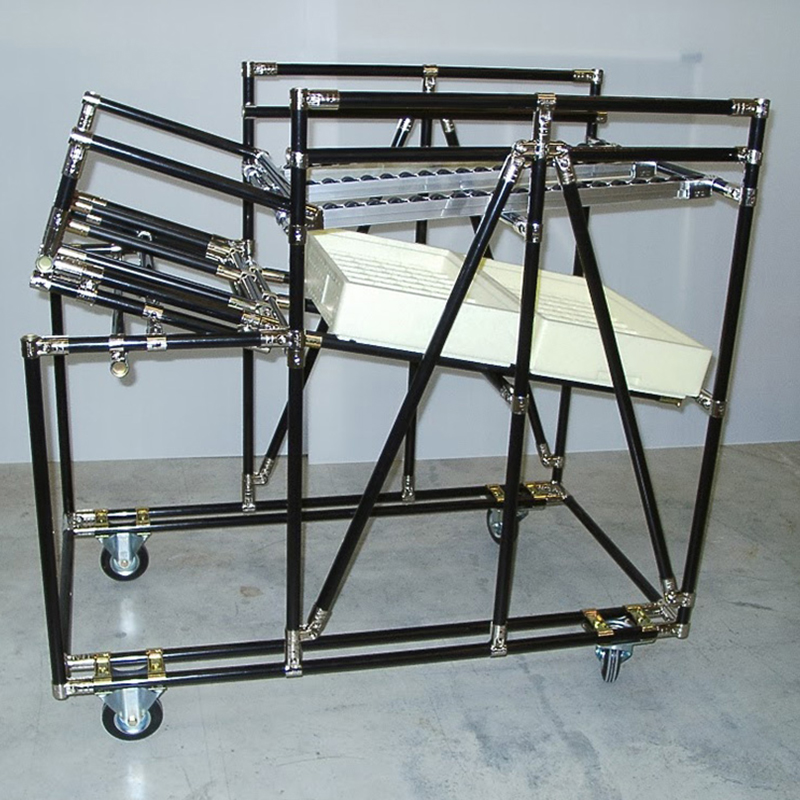

With joint and special accessories can be assembled into a variety of assembly lines, production lines, worktables, turnover vehicles and other external structures. ESD coated pipe is usually used in anti-static environment such as: circuit board, electrical appliances, precision electronics, 3C product manufacturing, etc
It is my great honor to serve you. Please let us know your needs, and we offer 7×24 hour online service for you.
The following questions and answers will help you accurately and quickly understand our company, products and services, and improve your work efficiency.
Production begins with a 30% deposit and the balance should be paid in full before shipment.
TT/ Western Union/Alibaba /VISA.
Yes, we offer cutting and assembly services.
Yes,it can print it in product and package carton.
The shelf life is 24 months when the package is unopened.
