Specification Information

Material: 6063-T5 aluminum

Slide groove: Force-bearing groove T:2.5mm/ wall thickness T:1.6mm

Unit weight of the chute: 0.721kg/m

Packaging quantity: 4pcs per package

Material of wheels: PP/ESD

Wheel color: black/white/yellow

Maximum load-bearing capacity: 200kg/m

Packaging requirements: Double-layer PVC plastic bags

Usage

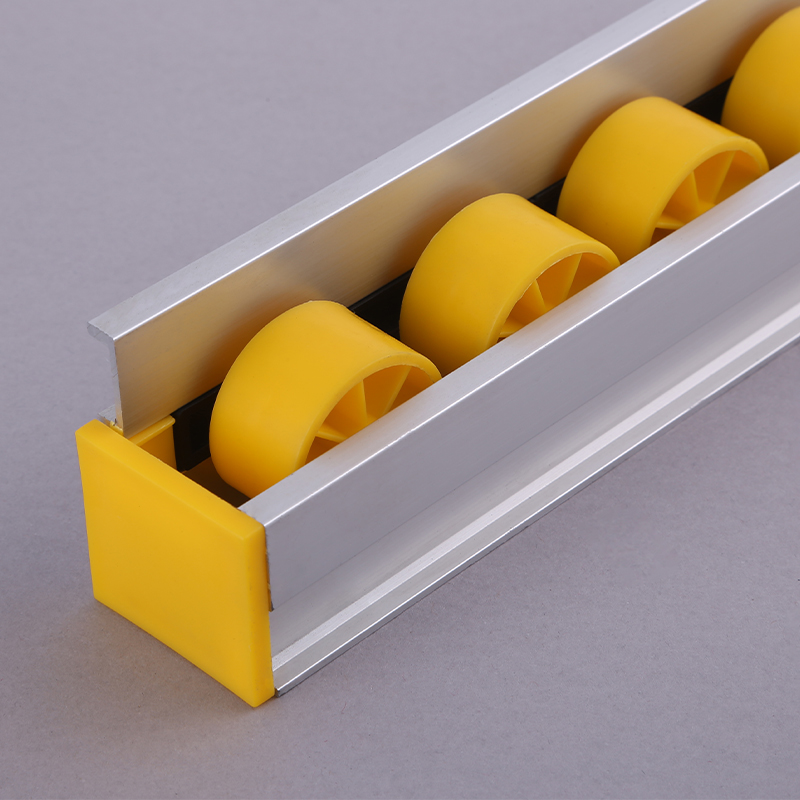

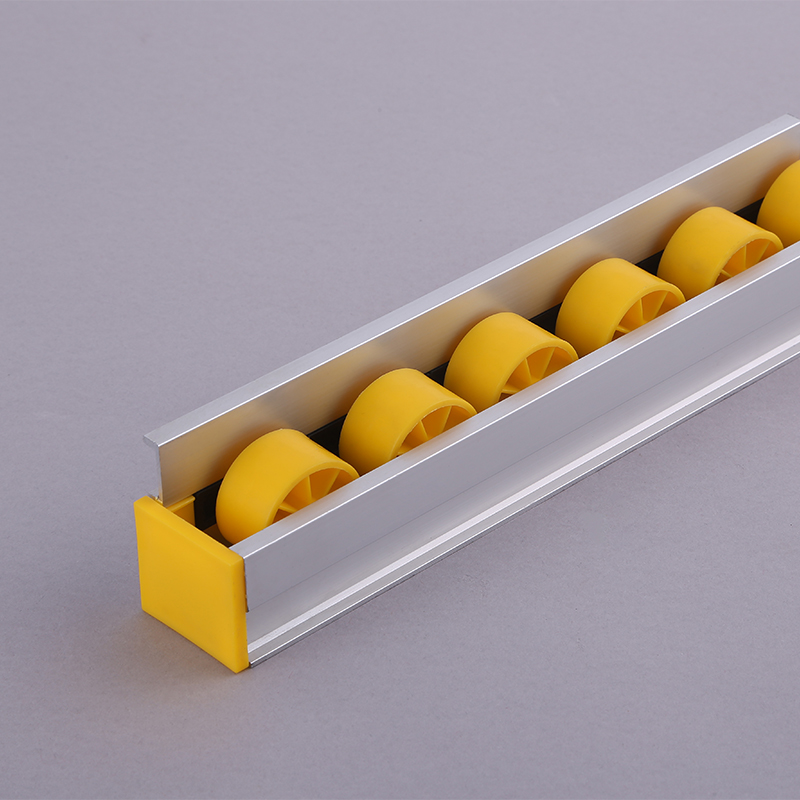

Aluminum alloy roller track with flanges can be used for goods transportation in first-in, first-out shelving systems, gravity shelving systems, and AGV material turnover carts. The flanges of the slide rails serve as guides to prevent goods from falling. Aluminum roller track can enhance the logistics efficiency of shelves and warehousing systems. Through their inclined surface design, they enable smooth sliding of items and optimize the process of goods storage and retrieval.

Features/Advantages

（1）The material density of aluminum roller track is low (about 1/3 of that of steel). The use of 6063-T5 aluminum material makes the aluminum roller track material have high mechanical strength and can bear a large load.

（2） The aluminum roller track adopts a hollow structure design, which not only reduces weight but also enhances bending resistance, making it suitable for long-span installation and transportation.

（3） The built-in wear-resistant combination rollers have a low friction coefficient, ensuring smooth sliding of materials (such as pallets and turnover boxes) and reducing the resistance of manual pushing. The inclined Angle installation utilizes gravity to achieve automatic sliding of materials, saving energy consumption

（4）The aluminum roller track is treated with anodizing, which is resistant to salt spray and oxidation, and is suitable for damp or industrial environments.

（5）The integrated flange design can save the materials and costs of adding blocking and guiding devices

（6）Cost advantage: When the wheels wear out, they can be disassembled and replaced with new ones for continued use. Different wheels can be replaced for different usage scenarios without the need to replace the roller track. For example, PP wheels can be used in regular environments, while ESD wheels can be replaced in anti-static environments.
