Specification Information

Material:galvanized sheet

Wall thickness T:0.8 mm

Unit weight of the chute: 0.935kg/m

Packaging quantity: 4pcs per package

Material of wheels: PP/ESD

Wheel color: black/white/yellow

Maximum load-bearing capacity: 150kg/m

Packaging requirements: Double-layer PVC plastic bags

Application

This roller track is an essential component in industrial roller track systems for efficient material handling. It is widely used in logistics, warehousing, production lines, retail, and various other scenarios as a durable roller rail track to create smooth, low-friction conveyance paths.

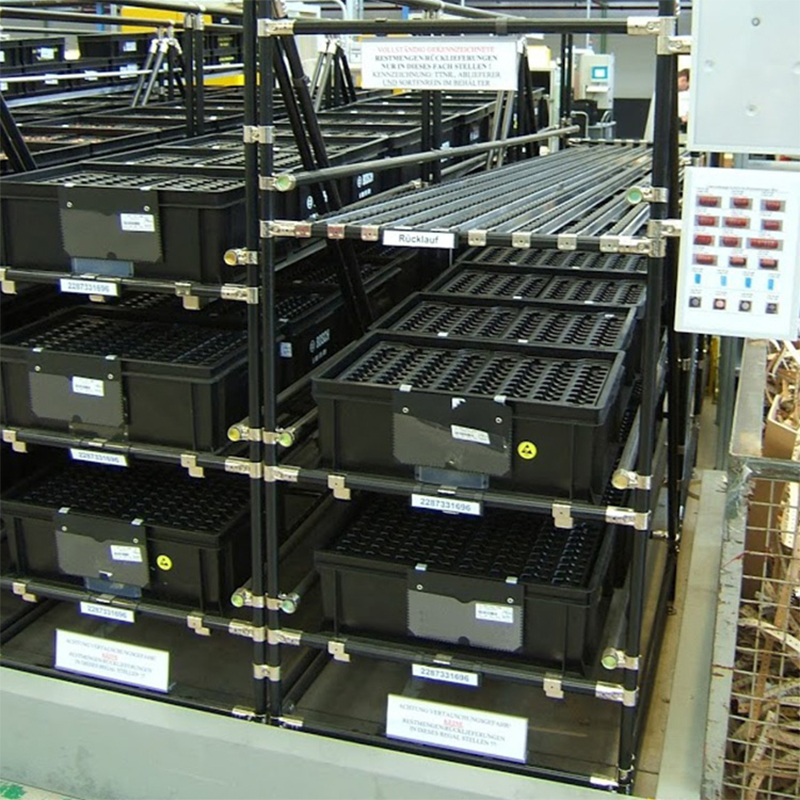

• Gravity sliding rack:

The flow bars can be installed on gravity sliding racks to form gravity roller tracks, allowing goods to slide by their own weight along the roller track flow rail, supporting simple and efficient roller track systems.

• Guide rail system:

In the guide rail system, the flow strips function as roller rails , guiding goods to move along a predetermined path and ensuring smooth and stable transportation within an industrial roller track system.

• Production line:

Flow strips can be used as industrial roller track components to connect different workstations, forming continuous roller tracks for stable material transportation along the production line.

• Logistics equipment:

Flow strips are used in various logistics equipment, such as turnover carts and logistics trolleys, where roller tracks structures support efficient material movement.

• Warehouse management:

The roller track helps optimize the utilization of warehouse space. Through the design of a three-dimensional structure, it increases the storage capacity of the warehouse and the convenience of access.

• Dust-free workshop

 Roller track can be used to build material handling systems that meet cleanliness requirements, reducing the generation and diffusion of dust.

• Large supermarkets

 Roller track can be applied to the storage and display systems of goods, improving the efficiency of goods circulation.

Features/Advantages

(1) Significant Cost Advantage: The roller track is fabricated from galvanized sheet metal with a straightforward manufacturing process. This grants it a distinct cost advantage, offering high value for industrial roller track system integrations.

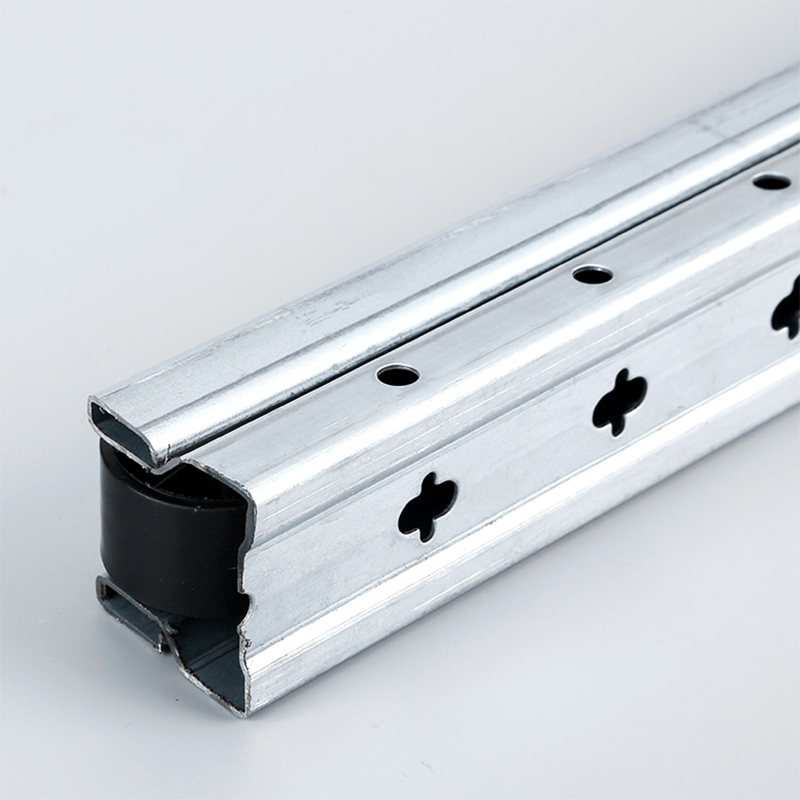

(2) Lightweight & High-Strength Structure: The sheet metal roller rail features a uniquely designed hollow and irregular-shaped bending structure. This innovation not only reduces the overall weight of the roller track system but also significantly enhances its bending resistance, making it ideal for long-span installations without sagging.

(3) Superior Durability & Corrosion Resistance: Constructed from galvanized sheet metal, the surface of this roller track is protected by a zinc coating. This treatment effectively prevents rust, ensuring long-term reliability and low maintenance in various industrial environments, which is a key advantage for industrial roller tracks.
