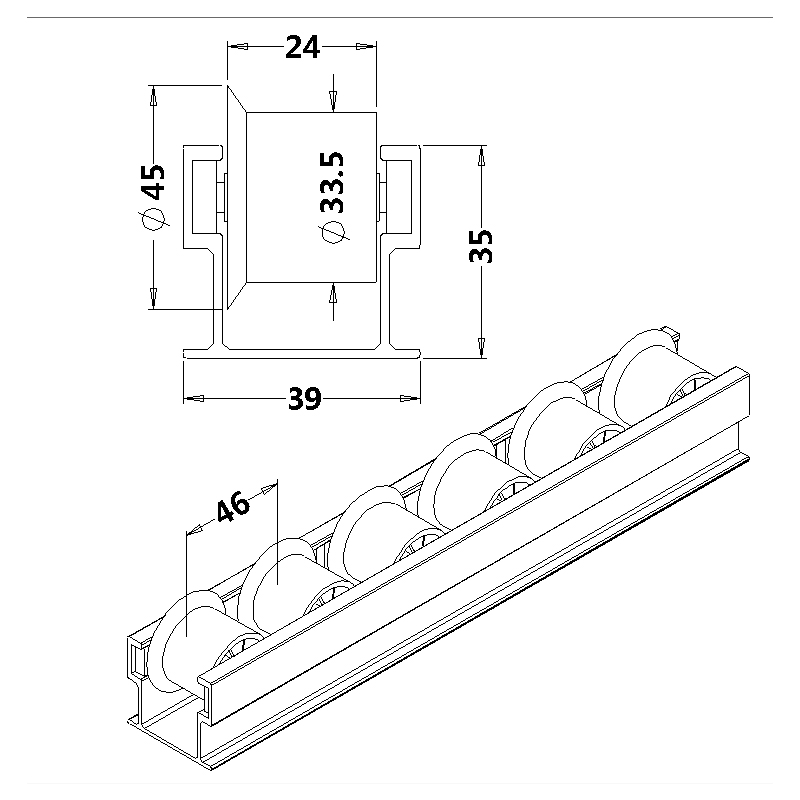

Specification Information

Material: 6063-T5 aluminum

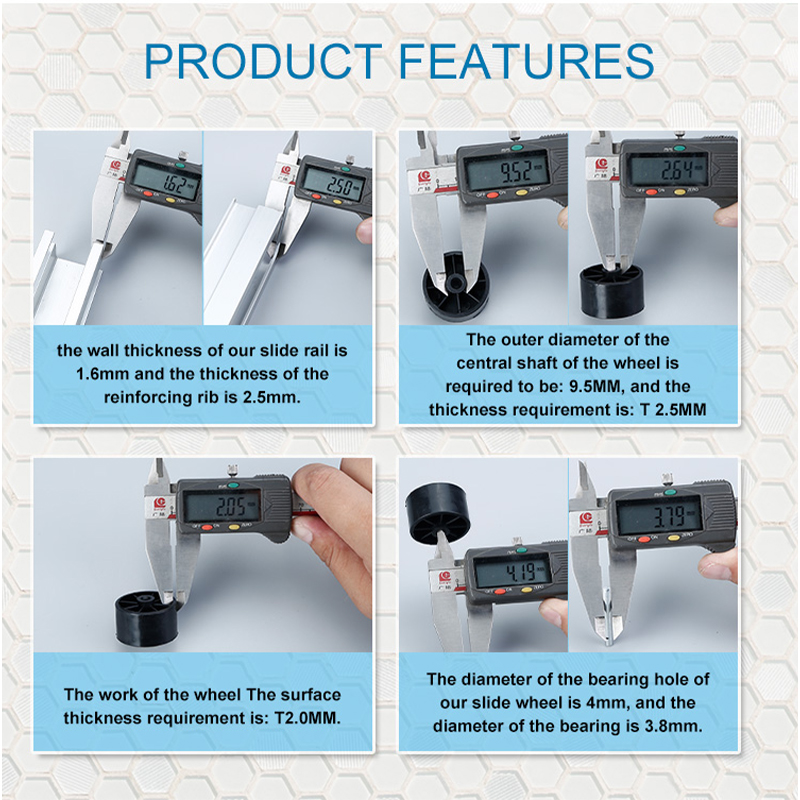

Slide groove: Force-bearing groove T:2.5mm/ wall thickness T:1.6mm

Unit weight of the chute: 0.622kg/m

Packaging quantity: 4pcs per package

Material of wheels: PP/ESD

Wheel color: black/white/yellow

The height of the wheel flange：6mm

Maximum load-bearing capacity: 200kg/m

Packaging requirements: Double-layer PVC plastic bags

Usage

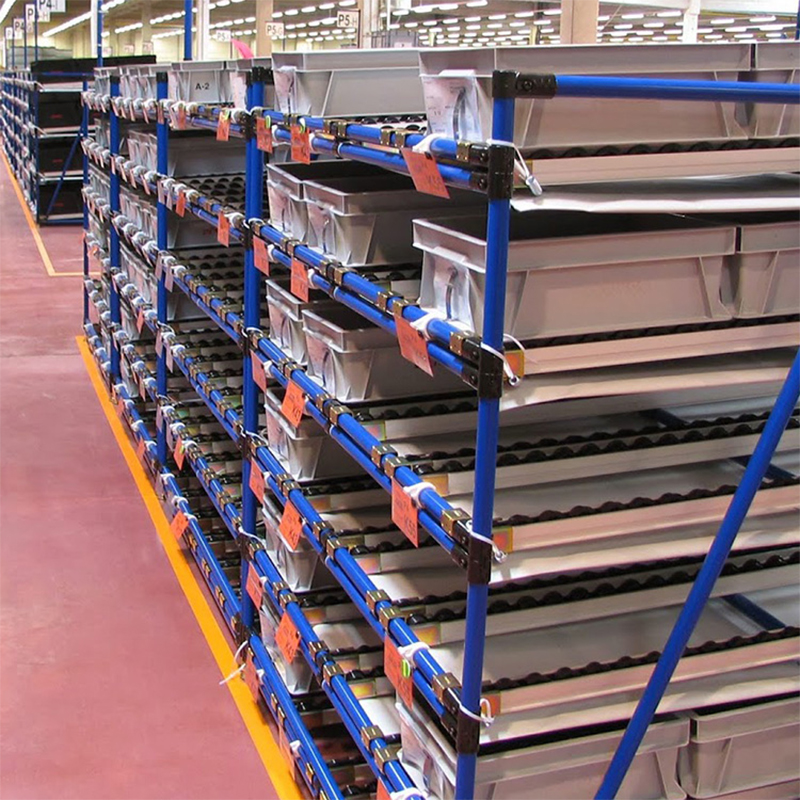

The main function of the side plates of the aluminum roller track is to prevent the goods from deviating during transportation, which could cause the goods to fall off or change their movement trajectory. The side plates of the wheels can play a guiding, blocking and preventive role. Improve transportation efficiency and ensure transportation safety and smoothness.

Features/Advantages

(1) The aluminum slide rail has a low material density (approximately one-third that of steel). The use of 6063-T5 aluminum material ensures that the aluminum slide rail has high mechanical strength and can bear a large load.

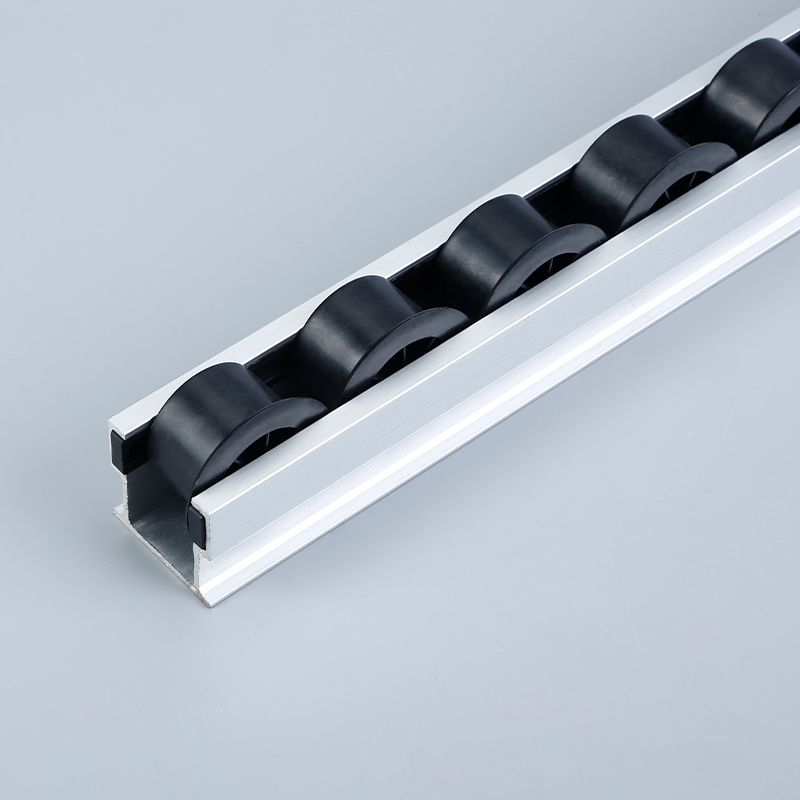

(2) The aluminum slide rail adopts a hollow structure design, which not only reduces weight but also enhances the bending resistance. It is suitable for long-span installation and transportation.

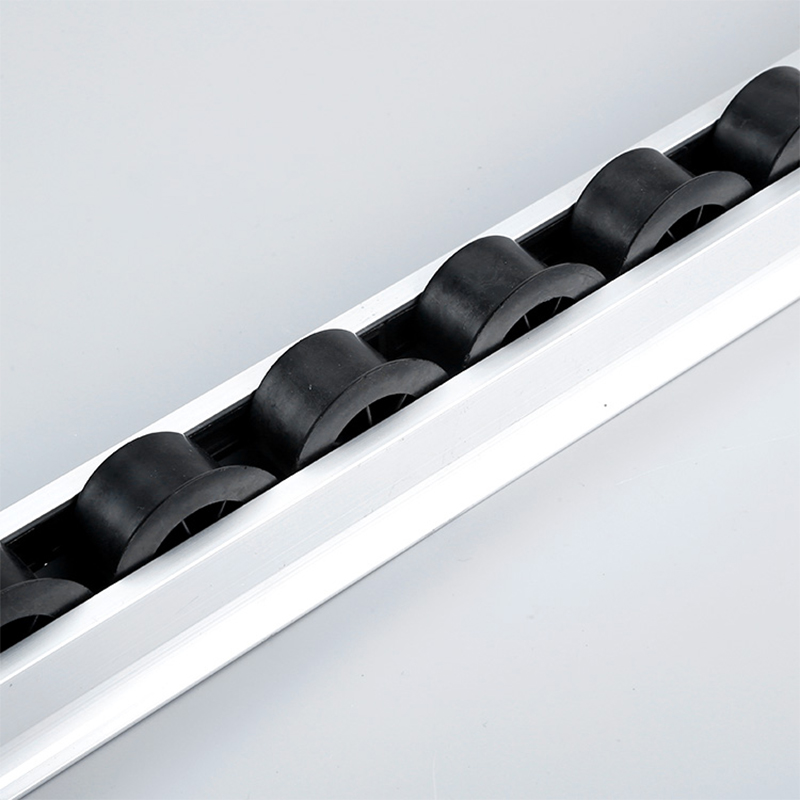

(3) Built-in combined rollers with guard edges ensure the accuracy and safety of long-distance transportation of goods.

(4) The aluminum slide rail undergoes an anodizing treatment, which is resistant to salt fog and oxidation, and is suitable for humid or industrial environments.

(5) Cost advantage: After the wheels wear out, they can be disassembled and replaced with new wheels for continued use. Different wheels can be replaced for different usage scenarios without the need to replace the slide rail, such as using PP wheels in regular environments and ESD wheels in anti-static environments.
