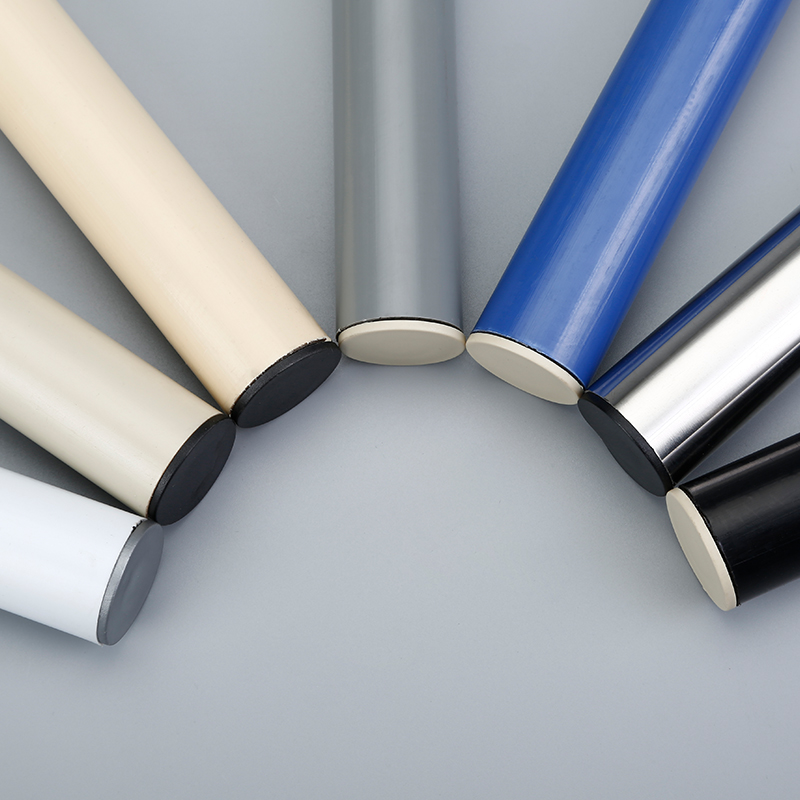

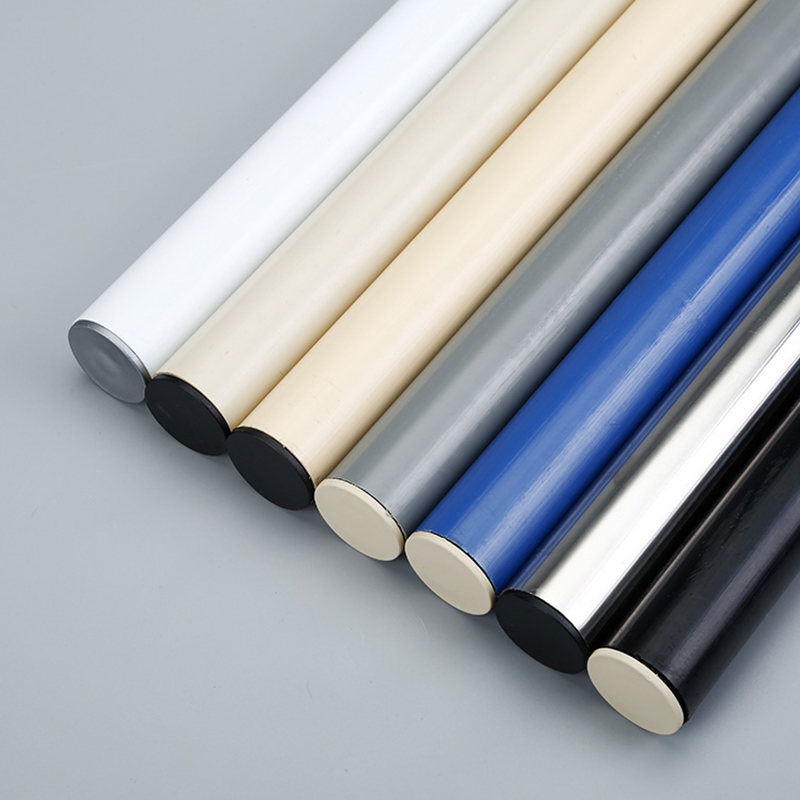

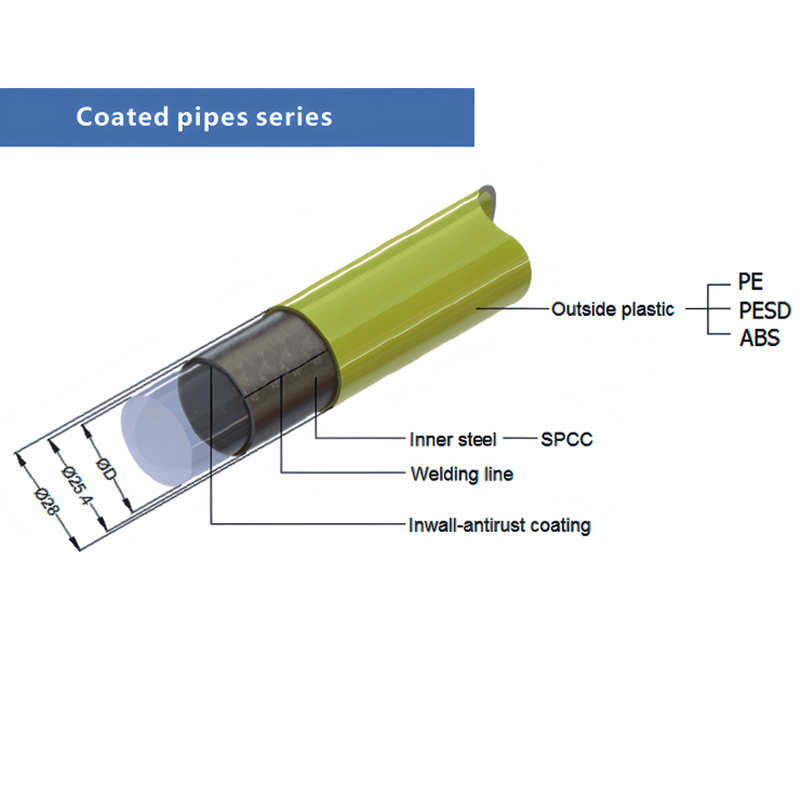

PE plastic coated pipe is also known as PE composite pipe, or PE flexible pipe, which is coated with PE plastic layer after surface treatment of high-quality steel pipe. It is produced by extrusion + plastic coating process on the surface of the steel pipe. The thickness of PE plastic coating is 1.2mm, and the inner wall of the pipe is coated with anti-rust coating.
| Product Specification | |||
| Color encode | Thickness | Meter/kg | Outer diameter |
| Ivory：JY-4000XY-P | 0.7mm | 0.53kg/m | 27.8±0.2mm |
| Beige：JY-4000MH-P | 0.8mm | 0.57kg/m | |
| Dark grey：JY-4000SH-P | 1.0mm | 0.70kg/m | |
| Dark blue：JY-4000SL-P | 1.2mm | 0.84kg/m | |
| Porcelain white：JY-4000CB-P | 2.0mm | 1.27kg/m | |
Material requirements
1. We use hardened cold rolled steel as raw material, and the coated pipe produced has good bearing capacity and bending resistance.
2, we choose high strength high density polyethylene material (HDPE). Therefore, our coated pipe PE coating has high hardness and is not easy to scratch.

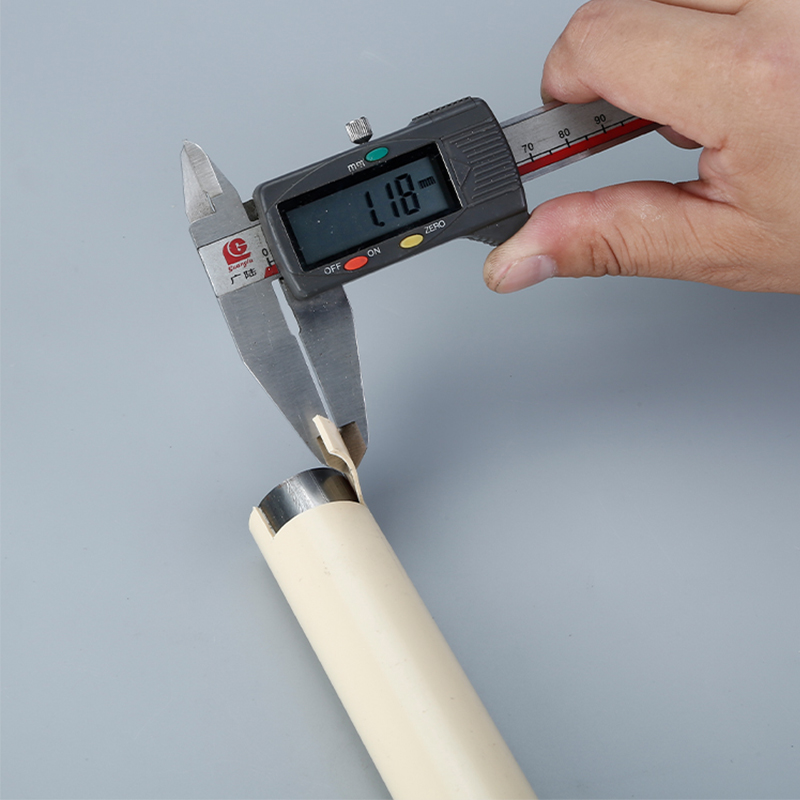

3. The thickness error of steel used in our coated pipe is < 0.05mm.
Range of application
With joint and special accessories can be assembled into a variety of assembly lines, production lines, worktables, turnover vehicles, storage shelves and other external structures. Widely used in the automobile industry, electronic manufacturing industry, communication industry, biological engineering, pharmaceutical industry, military industry, a variety of chemical, precision hardware and other diversified production links
It is my great honor to serve you. Please let us know your needs, and we offer 7×24 hour online service for you.
The following questions and answers will help you accurately and quickly understand our company, products and services, and improve your work efficiency.
Production begins with a 30% deposit and the balance should be paid in full before shipment.
TT/ Western Union/Alibaba /VISA.
Yes, we offer cutting and assembly services.
Yes,it can print it in product and package carton.
The shelf life is 24 months when the package is unopened.
